Epson Home Cinema 2030 Projector - Advanced Calibration Info

Posted on December 23, 2013 by

Color Management Settings (CMS)

Color Management Settings (Default is 0 for all)
Red Green Blue Cyan Magenta Yellow
Hue 0 48 -9 1 10 0
Saturation 6 9 -38 -1 1 0
Brightness 4 -8 23 0 18 -4

CMS Calibration Notes

The 2030 has a full CMS and by using it, all of the primaries and secondaries could be improved.  By default, blue was oversaturated and magenta was too blue.  Using the CMS, blue and magenta were improved and overall, skin tones came out really well.  Luminance errors for primaries and hue errors for secondaries were almost non-existent.  Even without the CMS, turning color down a bit will take out some of the excess red in skin tones, which don’t look bad in any mode by default.

Calibration Charts (Before and After)

Click to enlarge these charts, pre- and post-calibration.

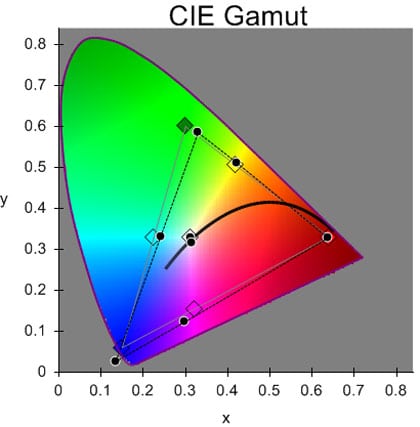

Epson Home Cinema 2030 CIE Chart Pre-Calibration

Epson Home Cinema 2030 CIE Chart Post-Calibration (CMS)

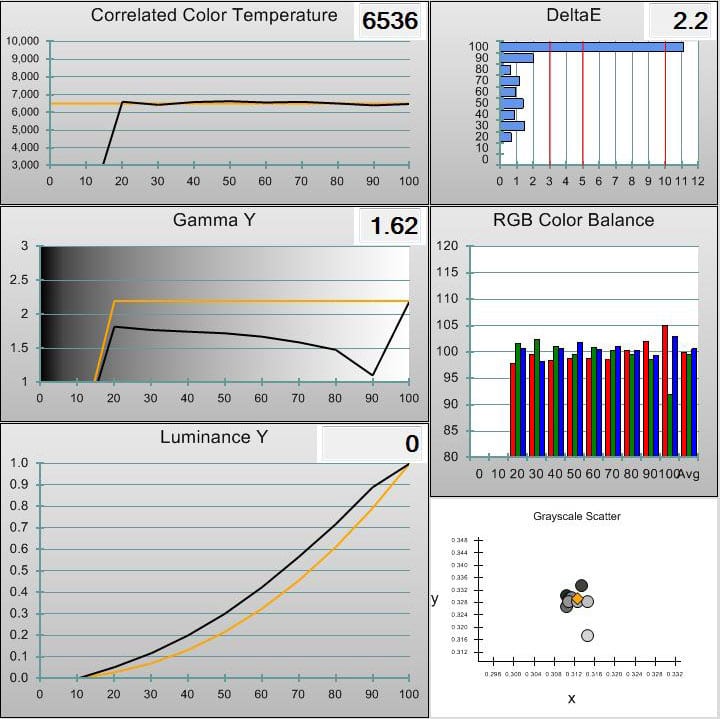

Epson Home Cinema 2030 Grayscale Calibration Chart
