JVC DLA-X55R Projector - Advanced Calibration Information

Posted on December 23, 2013 by

Color Management Settings (CMS)

Color Management Settings (Default is 0)
Red Green Blue Cyan Magenta Yellow
Hue 6 10 0 -3 -7 3
Saturation -4 0 -11 0 -4 0
Brightness 14 -3 4 0 10 9

Notes on CMS

From Mike:

The CMS works quite well and I was able to dial in the colors pretty well. Overall, colors look very good.

Calibration Charts (Before and After)

Click to enlarge these charts, pre- and post-calibration.

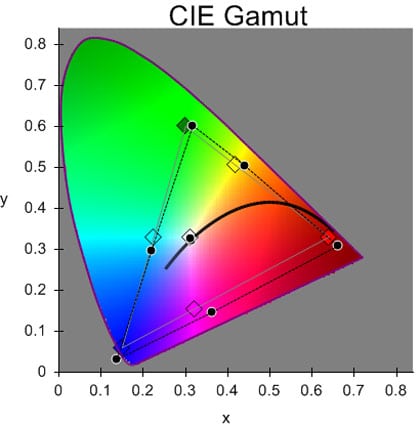

JVC DLA-X55R CIE Chart Pre-Calibration

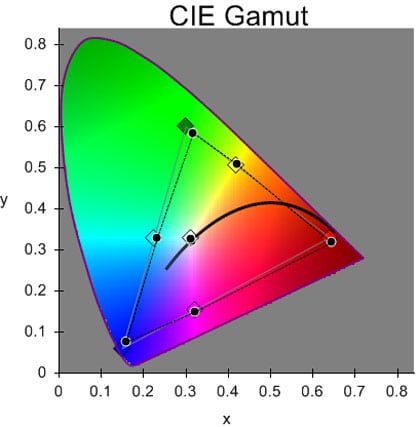

JVC DLA-X55R CIE Chart Post-Calibration (CMS)

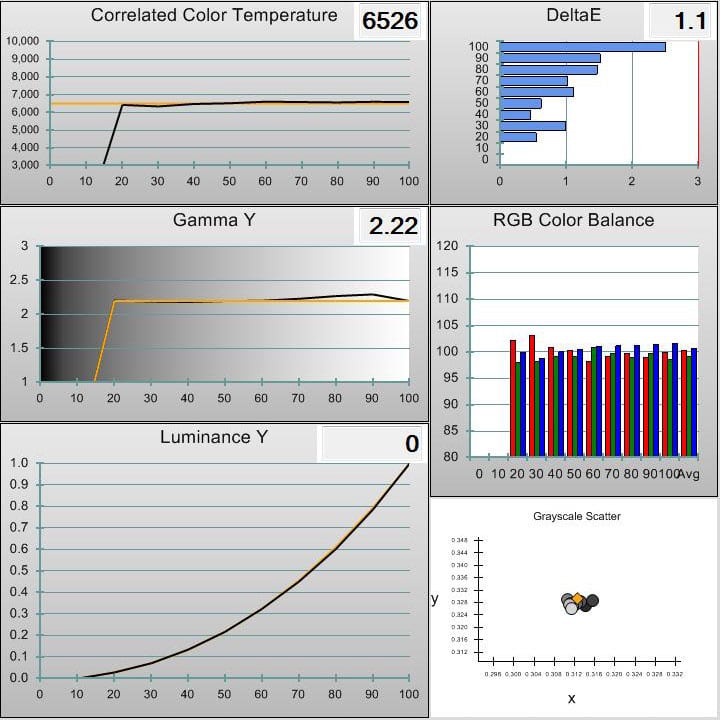

JVC DLA-X55R Grayscale Chart
